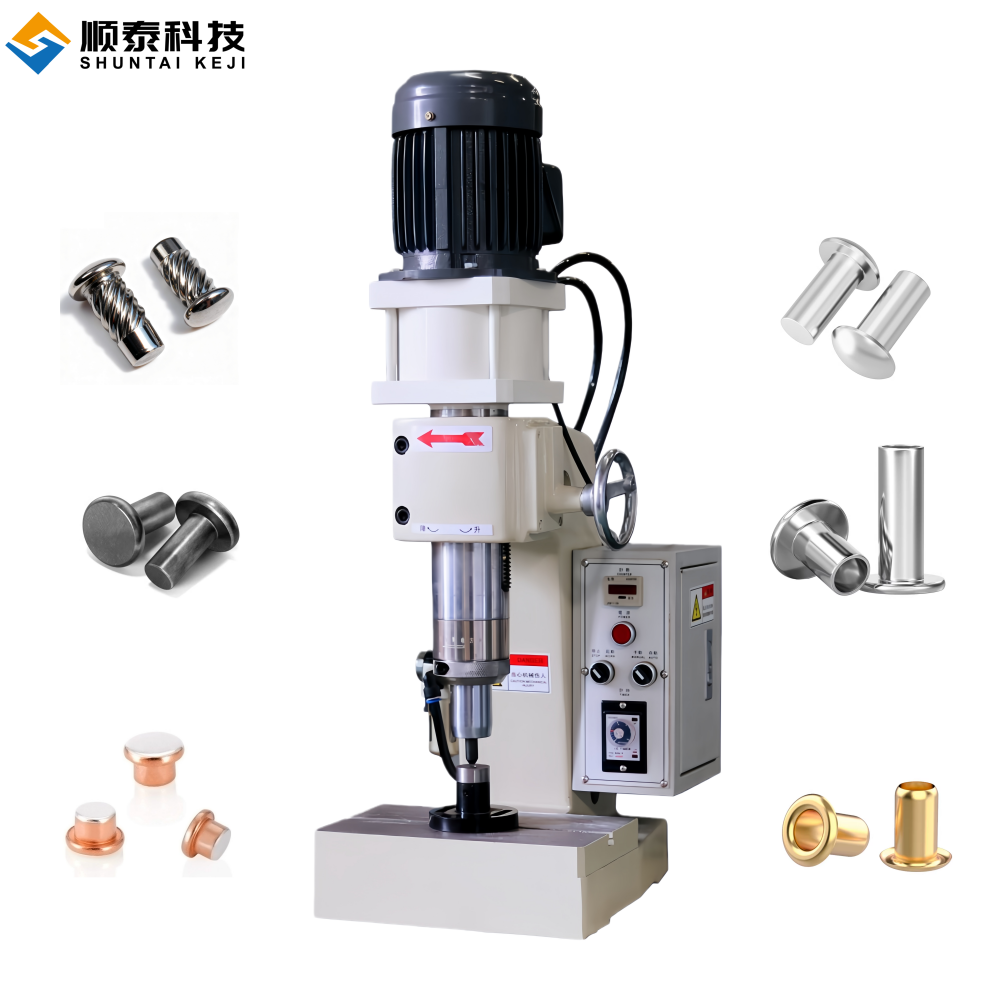

Advantages & Features

Compared to traditional impact riveting, the Pneumatic Orbital Riveting Machine offers the following core advantages

Icon	Feature	Simplified Description
🏆	Quality Riveting	Smooth, crack-free rivets with minimal deformation
🔧	Easy Maintenance	Stable pneumatic design, simple to operate and maintain
⚙️	Flexible Processing	Handles various materials and shapes with adjustments
📈	Cost-Effective	Low investment and energy use, economical operation
⚡	Fast Production	Rapid cycle times, ideal for batch production

Multi-Industry Precision Component Solutions

Device Function Description



Shun Tai Riveting Machine Specifications Table

Shun Tai Technology riveting machines offer full parameter support, including 3D/2D and more detailed parameter tables. We also provide highly flexible customization services. For detailed parameters, please contact Shun Tai Technology.

Item	Parameter		Item	Parameter
Motor Power	0.5HP		Maximum Pressure	800kg
Spindle Stroke	40mm		Rivet Length	150mm
Adjustable Stroke	110mm		Machine Height	940–1050mm
Speed	1400rpm		Table Size	190 × 320mm
Throat Depth	120mm		Machine Weight	120kg
Riveting Diameter (Solid Mild Steel)	Φ7 mm		Packaging Dimensions	500 × 600 × 1180mm
Riveting Diameter (Hollow Mild Steel)	Φ15mm		Packaging Weight	140kg
Operating Pressure Range	2–8bar		Power Supply	AC380V/3P/50Hz

Applications of rivets

Our servo riveting machine intelligently adapts to various materials and structures for complex process requirements.

No.	Material Category	Specific Materials	Supported Structures	Processing States	Process Characteristics
1	Aluminum & Alloys	Aluminum (Al) Aluminum Alloys	○ Hollow ◐ Semi-Hollow ● Solid	✅ Heat treated ✅ Not heat treated	Anti-deformation algorithm ensures mark-free surfaces; adaptive to oxide layers.
2	Copper & Alloys	Pure Copper (Cu) Brass/Bronze Copper Alloys	○ Hollow ◐ Semi-Hollow ● Solid	✅ Heat-Treated ✅ Non Heat-Treated	Anti-galling mode for soft materials; special thermal process for high conductivity.
3	Carbon & Alloy Steels	Carbon steel Alloy steel	○ Hollow ◐ Semi-Hollow ● Solid	✅ Heat-Treated ✅ Non Heat-Treated	High-torque mode with dynamic pressure compensation for varying hardness.
4	Stainless Steels	Austenitic Ferritic Martensitic	○ Hollow ◐ Semi-Hollow ● Solid	✅ Heat-Treated ✅ Non Heat-Treated	Low-speed, high-force control is used to prevent work hardening, and special process parameters are applied for stainless steel materials.
5	Special Alloys	Titanium Alloys Nickel-Based Alloys	○ Hollow ◐ Semi-Hollow ● Solid	✅ Heat-Treated ✅ Non Heat-Treated	Optional inert gas protection process for reactive & hard-to-form materials.

Explanation of Orbital Riveting Working Principle

This unique compound motion causes the contact point between the die (Mould in Diagram 1) and the rivet (River) to continuously vary, transforming the powerful axial force into a uniform, continuous radial material flow. Guided by the riveting needle (Rotary rivet needle) and constrained by the die cavity, the rivet material spreads evenly outward—akin to being “gently kneaded” rather than “forcibly upset.” This results in a reliable joint that is free of cracks, highly precise, and has a smooth finish, all achieved with minimal riveting force (only 10%-20% of traditional press riveting).

Orbital riveting is an advanced cold-forming process. Its core lies in maintaining a precise tilt angle (α, typically 3°-8°) between the riveting spindle axis and the forming die axis. During operation, the riveting spindle does not press down vertically. Instead, it drives the die to perform a continuous 360° eccentric orbital movement (shown as the S trajectory in Diagram 2) while simultaneously feeding along the Z-axis.

Riveting Shape Selection and Application

Our servo orbital riveting enables diverse shapes — including Flat, Countersunk, Ball Head, Flared, and Custom forms — to meet varied functional and space requirements. We provide standard shape options (S1–S9) and support tailored designs for precise, reliable, and space-efficient joints.



Equipment detailed design

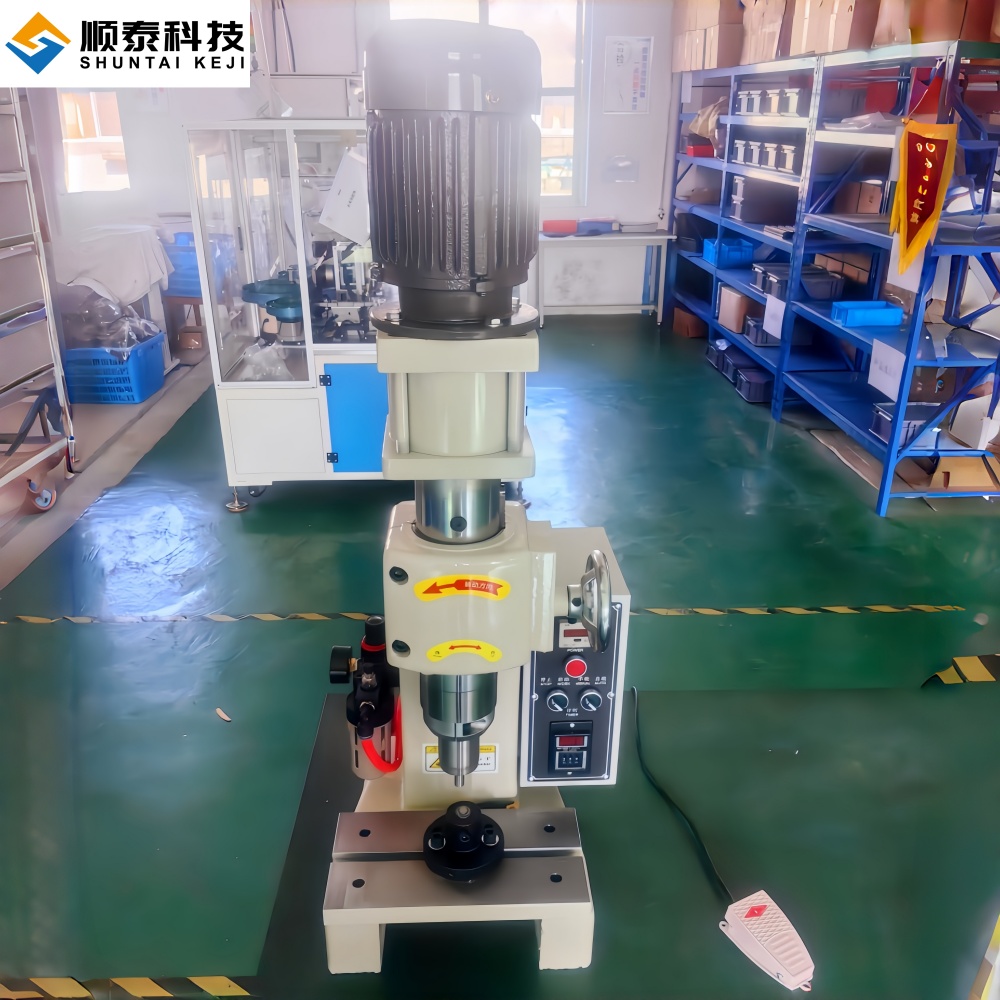

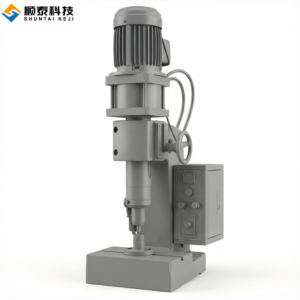

Featuring an adjustable stroke design, it flexibly adapts to different part sizes and process requirements. The machine body is made of high-quality carbon structural steel, precisely machined and treated to ensure long-term stable operation and positioning accuracy. The worktable adopts a multi-slot modular design, compatible with various fixtures, enhancing production flexibility. The integrated control box combines the operation panel, speed control unit, and protection functions, achieving simple and efficient human-machine interaction.

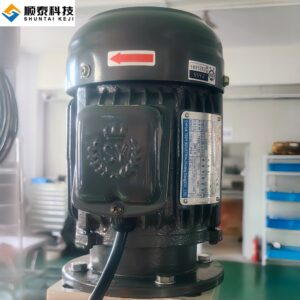

	Utilizes precision pneumatic control and orbital forming technology, equipped with adjustable-speed industrial motor for diverse material and process needs. Offers parameter configurations and customization services. Ideal for automotive, appliance, machinery industries, delivering efficient and cost-effective fastening solutions.

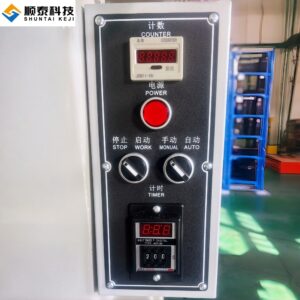

It adopts a purely pneumatic mechanical control and integrated electrical box solution, equipped with intuitive start/stop buttons and status indicator lights. The structure is simple and reliable, easy to maintain, and suitable for riveting applications that do not require a high degree of automation and prioritize economy and practicality.

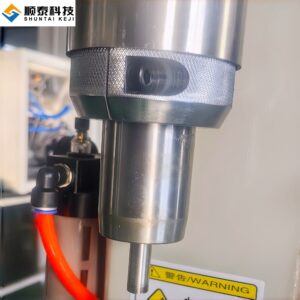

	The precision power head with fine-tuning capabilities allows for precise adjustment of spindle stroke and riveting force, accommodating rivets of different diameters and lengths. This ensures accurate matching of process parameters when joining workpieces of varying materials and thicknesses. This design improves product consistency and yield while maintaining riveting efficiency, offering both practicality and cost-effectiveness, making it suitable for diverse production needs.

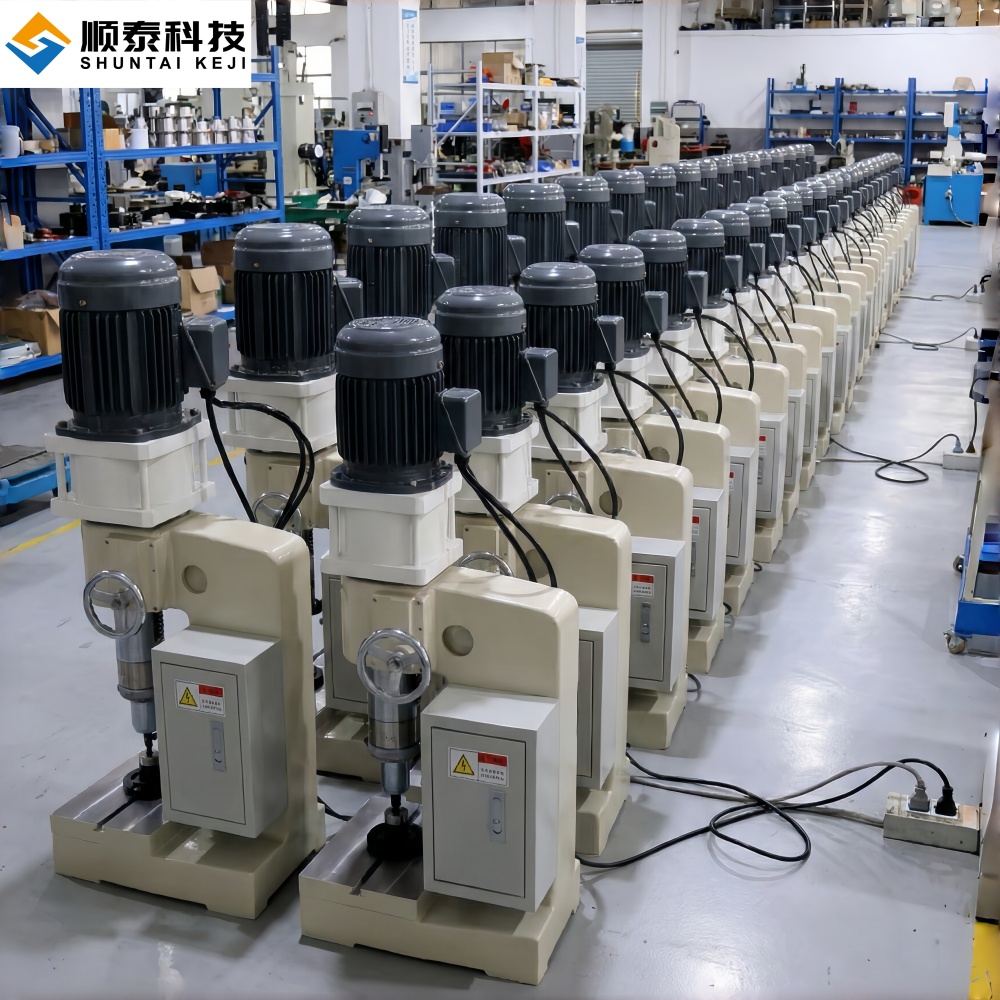

Equipment mass production site
